Sight Glass Types


Choudhary Metal Industries supply a wide range of sight glasses for viewing the contents and/or level of tanks, vessels or pipelines.

  • Methods of installation are by welding, bolting or clamping into your equipment.
  • Pressure ratings range from high vacuum, through atmospheric to high pressures up to 1000 bar.
  • Temperature ratings range for cryogenic to furnace.
  • Sizes range from 6 mm through to 600 mm.
  • Materials available include aluminium, carbon steels, stainless steels, duplex stainless steels and hastelloy.

Circular sight glass fittings

A sight glass, also called a sight window or view port, comprises two flanges, bolted together, surrounding a glass disc sealed with gaskets and provides a means of viewing the inside of a process vessel or tank. Typically used to visually verify stages of a process, inspect process media, and to observe liquid levels. Common applications include the viewing of internals of pressure vessels, tanks, silos, stirred vessels, separators pipelines etc. In addition to the sight glasses, Choudhary Metal Industries can also supply accessories such as a wiper, sight glass Luminaires, cameras and spare glass and gaskets.


Sight flow indicators

A sight flow indicator is used in process pipelines to observe the flow of liquid, powder or gas. It is comprised of a body with one or more viewing windows. It is the most reliable way to verify flow for direction and approximate rate, colour and clarity. We offer standard view and full-view sight flow indicators for industrial, sterile and hygienic applications. Our range, with a choice of materials including stainless steel, carbon steel and duplex bodies, suit industrial applications with working temperatures up to 250ºC and working pressures up to 16 bar for the standard range and 40 bar for the high pressure range, and up to 250 bar for custom applications.

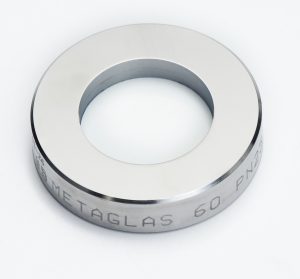

Metal fused sight glasses "METAGLAS®" consist of a sight glass that is fused into a steel ring. The different expansion coefficients of glass and metal cause a compressive stress inside the glass. The mechanical prestress commands a higher security compared to thermal prestressed glasses. Because of the mechanical treatment of the steel ring, various constructive soultions can be realised.


Glass tube liquid level gauge and Magnetic Level gauges

Magnetic Level Gauge consists of an external chamber mounted byflange or thread to the size of the process vessel. The external chamber is completely sealed and includes only a magnetic float that rises and falls according to the medium level due to buoyancy. Attached externally outside of the chamber is a strip of magnetic flags that are painted either white or red. When the magnetic float passes through the chamber, the magnetic flags are flipped over 180° to indicate level of the medium within the chamber. The flags are made of engineering plastics for general purposes as well as ceramic for high temperature applications. This operation means that the effective medium level could be determined at any point of time by the level of red flags on the chamber without any power source required.


Rectangular sight glass fittings

A sight glass, also called a sight window or view port, comprises two flanges, bolted together, surrounding a glass disc sealed with gaskets and provides a means of viewing the inside of a process vessel or tank. Typically used to visually verify stages of a process, inspect process media, and to observe liquid levels. Common applications include the viewing of internals of pressure vessels, tanks, silos, stirred vessels, separators pipelines etc. In addition to the sight glasses, Choudhary Metal Industries can also supply accessories such as a wiper, sight glass luminaires, cameras and spare glass and gaskets.


Sanitary and hygienic equipment

Choudhary Metal Industries’s Sterile Visual Flow Indicator offers easy cleaning, validation and sterilisation so it is ideal for biotech and pharmaceutical applications. The unique o-ring sealing design offers the smoothest internal bore available with minimal bug traps. Polished stainless steel connections include sanitary clamps, orbital weld & Swagelock TS as standard.


Water Treatment Sight Glass Fittings

Custom Sightports for use on biodigesters and water treatment plants. Suitable for setting into concrete, bolting to a base flange or welding into steel vessels & tanks.
